Honda CT110 Cam Chain Tensioner Rebuild Kit

Description

Honda CT110 Cam Chain Tensioner Rebuild Kit

This rebuild kit comes with everything that you need for a Cam Chain Roller Rebuild on your CT110 Postie Bike.

→ All Genuine Honda Parts

All CT110 Models

( Gasket does not suit Ag models ) Please contact us for availability

Option 1 :

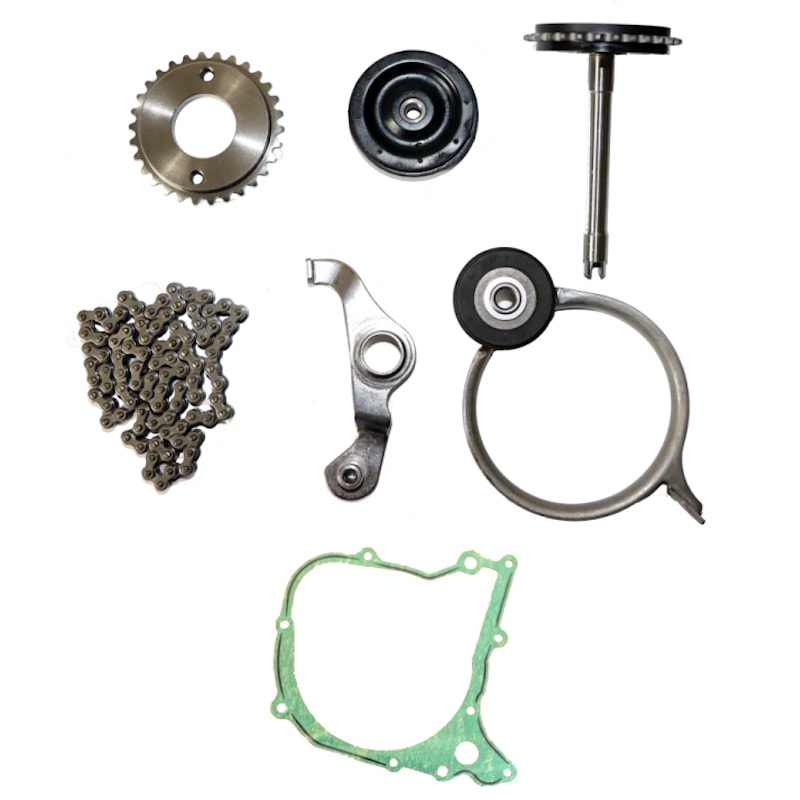

Roller Rebuild Kit ( 7 x Piece )

Sold Individually or as a Complete Kit

Part Numbers:

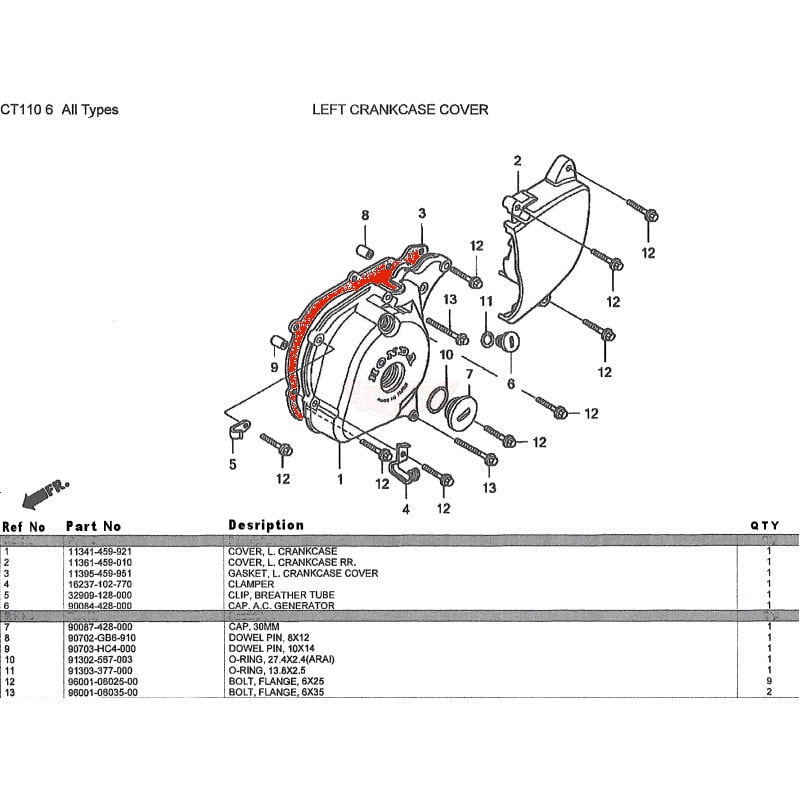

• Left Crank Case Cover Gasket / 11395-459-952 ( Superseded 11395-459-953.)
• Cam Sprocket Part # 1  / 14321-028-000.
• Cam Chain Roller Part # 12  / 14610-105-691.
• Cam Chain Guide Sprocket Part # 14 ( 29T ) / 14670-028-000.
• Tensioner Setting Plate Arm Part # 10 / 14592-459-010.
• Cam Chain Tensioner Roller Part # 3 / 14500-459-000.
• Cam Chain 92L – Part # WBCC-92.

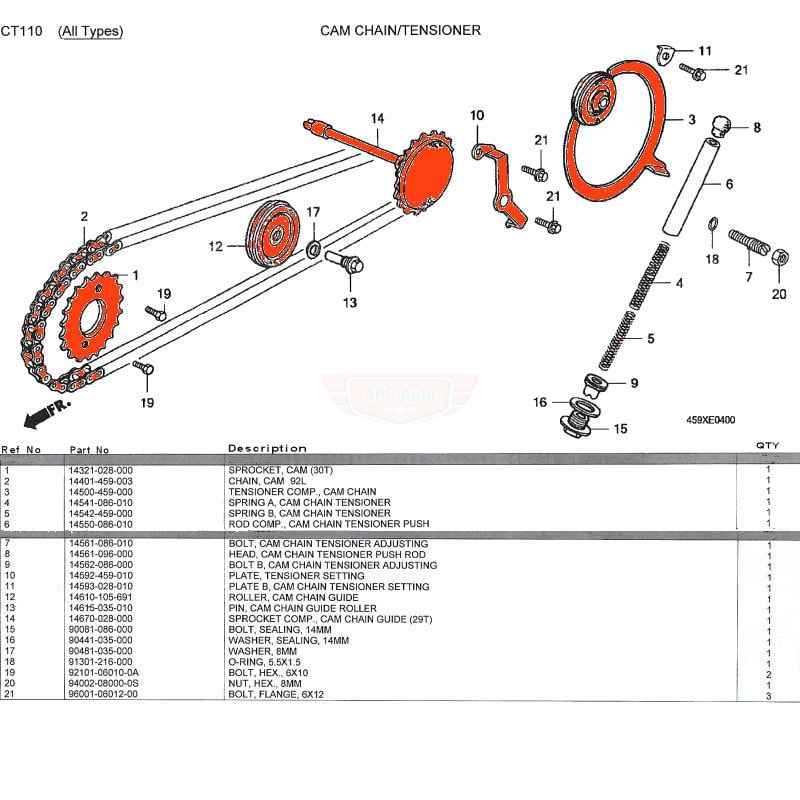

Please Refer To Diagram

Option 2 :

Tensioner Push Rod Kit

Sold as a complete Kit. ( 3 x Piece )

Part Numbers:

• Tensioner Spring ( A ) Part #4  / 14541-086-010.
• Tensioner Spring ( B ) Part #5 / 14542-459-000.
• Tensioner Push Rod Head Part #8 / 14561-096-000.
